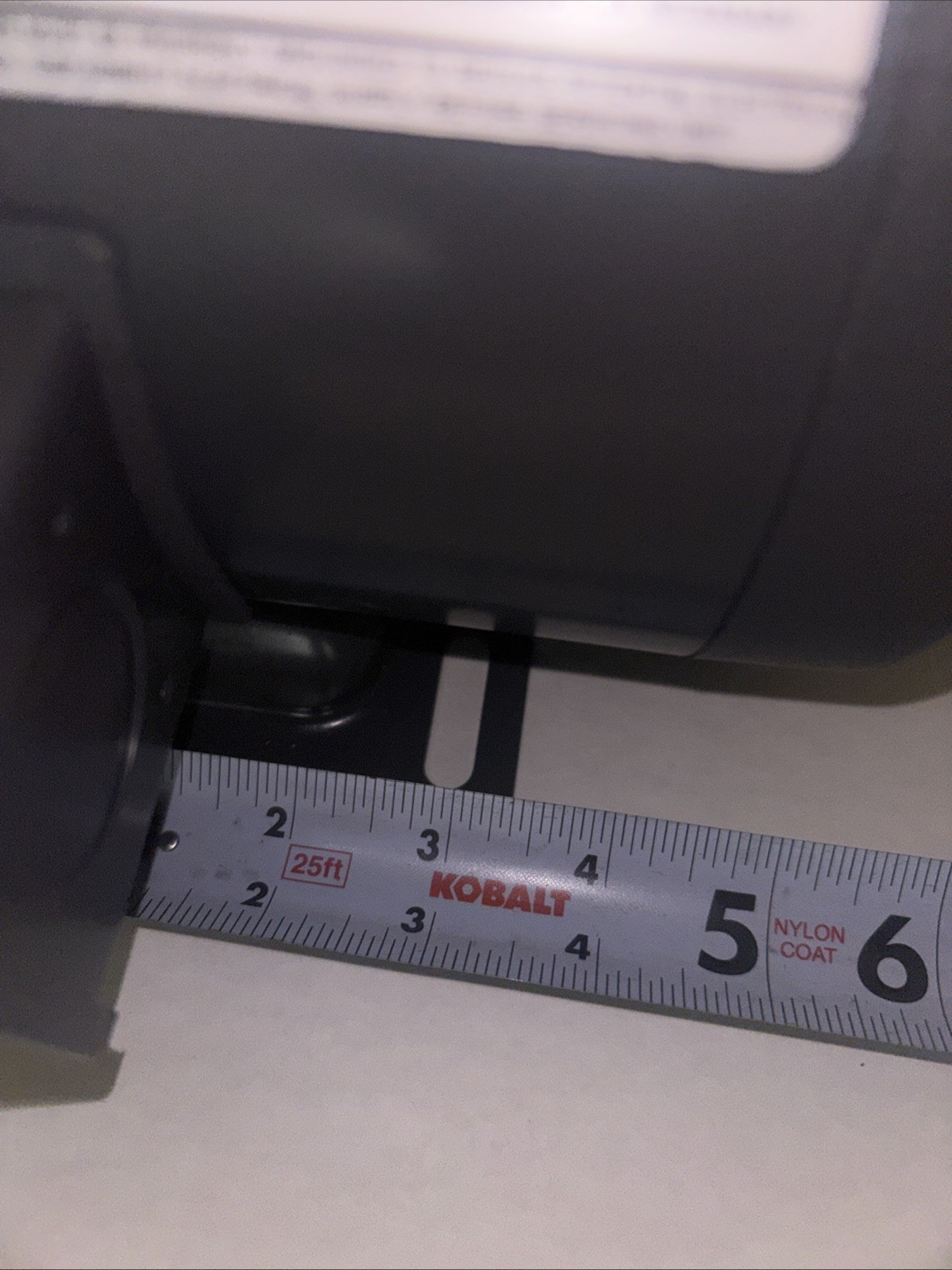

US Motors B241
USD 90.00 USD
Specifications
| Full Load Amps | 8.0/4.0 |
| Rated Load (HP) | 1/2 |
| AC Frequency Rating | 60 Hz |
| Base RPM | 3450 |
| Insulation Class | B (Max 266°F) |
| Mounting Type | Rigid Mount |
| Brand | US Motors |
| Reversible/Non-Reversible | Reversible |
| Service Factor | 1.15 |
| Model | B241 |
| Nominal Rated Input Voltage | 115/208-230 |
| AC Phase | Single Phase |
| Country Of Origin | United States |
The US Motors B241 is a general purpose electric motor designed for industrial automation and motion control applications. With a rated load of 1/2 horsepower and a base RPM of 3450, this motor is suitable for a variety of tasks. It features a rigid mount for easy installation and a reversible design for added versatility. The motor is IEC frame size 56, insulated with a B class rating for reliable performance up to 266°F, and has a service factor of 1.15. Made in the United States by US Motors, this motor is a reliable and efficient choice for various industrial applications.
Related Items
PTO Kit 6 Spline – for tractors & implements having 6 spline PTO shafts
50pcs 1/2 Inch Cable Clamps 304 Stainless Steel Rubber Cushion Insulated Wire Cl
U.S. PAPER COUNTERS PAPER COUNTER M-1
Clear Acrylic Solid Polished Display Block/Cube 2″ x 2″ x 2″
DENALI Sodium Fluoride Varnish With TPC – Bubblegum 50 pack – Alpine
FDA Silicone Rubber Sheet, 50A, 1/16 x 3 x 9 Inch, Food Grade Gasket Material
8′ ft. Fitted Polyester Table Cover Trade Show Event Tablecloth Turquoise Blue

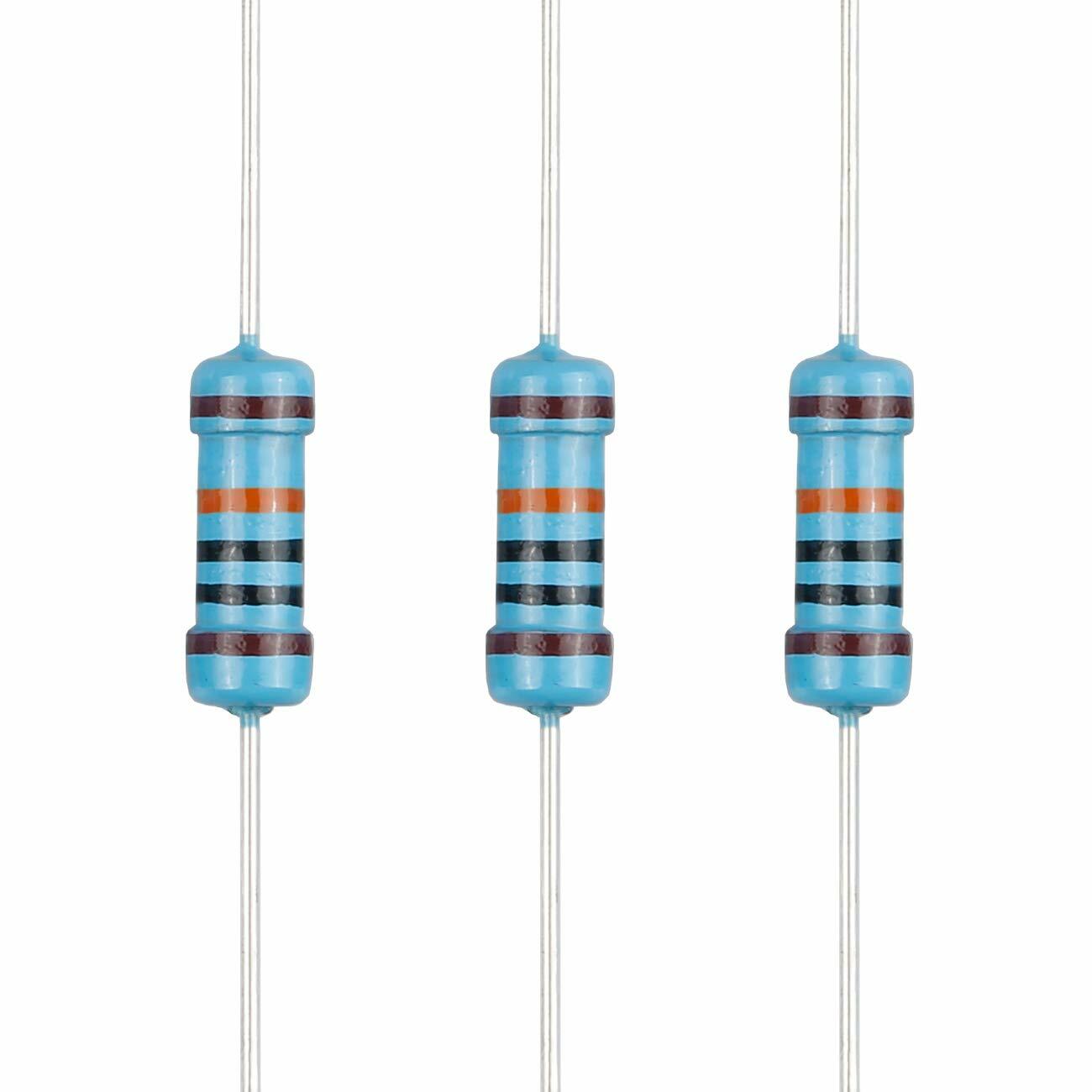

10pcs 100K ohm 1/4 Watts Metal Film Resistors 1% Tolerance Shipped USA
