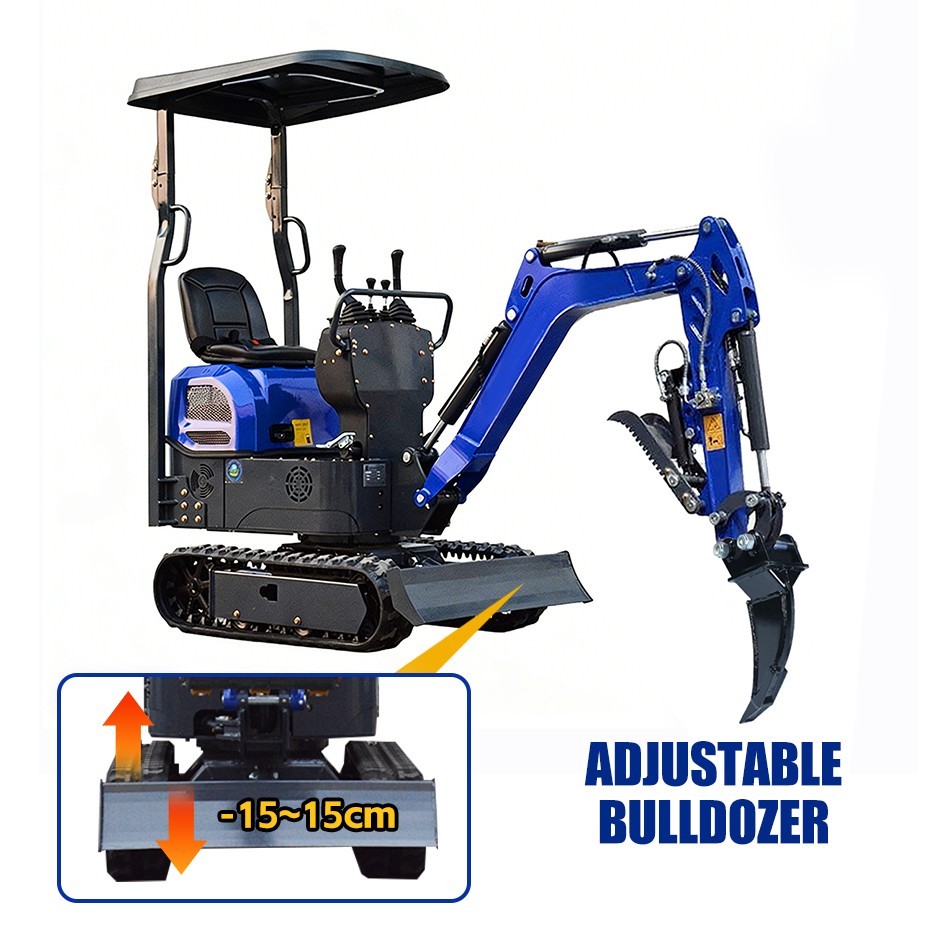

Mini Excavator 1Ton Diggers EPA Engine + 3 Attachments Excavator Free Delivery
USD 4532.14 USD
Specifications
| Track Width | 180 mm |
| Minimum Ground Clearance | 110 mm |
| Max Dig Depth | 5' - 6' |
| MPN | 12U |
| Climbing Ability | 30° |
| Equipment Type | Mini Excavator |
| Bucket Capacity | 0.025 m³ |
| Serial Number | 12U |
| Maximum Digging Distance | 3005 mm |
| Ground Pressure | 21 kPa |
| Model Year | 2025 |
| Unit Type | Unit |
| Turning Radius | 780 mm |
| Working Pressure | 19 MPa |
| Net Horsepower (HP) | 10 - 20 |
| Digging Force | 4.3 KN |
| Rated Speed | 3600 rpm |
| Maximum Digging Height | 2786 mm |
| Track Length | 1220 mm |
| Ground Contact Length | 900 mm |
| Operating Weight | Under 3,000 lbs |
| Overall Height (roof) | 2100 mm |
| Maximum Digging Depth | 1764 mm |
| Maximum Dumping Height | 1961 mm |
| Overall Length | 2890 mm |
| Overall Width | 940 mm |
| Model | Rato 420 12HP |
| Rated Power | 8.6 KW |
| Counterweight Ground Clearance | 384 mm |
| Overall Height (seat) | 1426 mm |
| Travel Speed | 2.2 km/h |
| Country Of Origin | China |
Top-mounted boom cylinder: The top-mounted cylinder design optimizes torque distribution, providing stronger initial digging force and boom lifting force, and significantly reducing the risk of external impacts and crushing injuries, effectively extending service life.
