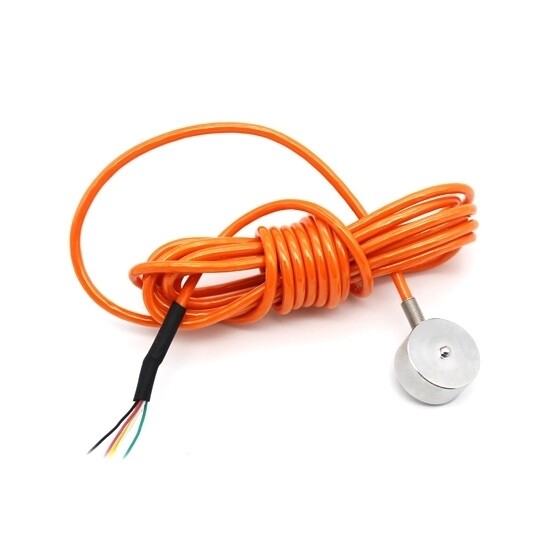

Compression Load Cell Button type Load Cell Sensor Small Compression Mini Force
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | ATO |
| Termination Type | Cable |
| Output Type | Digital |
| MPN | Does not apply |
Customized services：If you can’t find the specifications you want, you can contact customer service to send the spindle machine nameplate for customization. Specification: Capacity range *5kg~5 tonAccuracy0.3%F.S (linearity + hysteresis + repeatability)Sensitivity2.0mV/V (Low range variations may differ)Creep±0.05%F.S/30minZero output±1%F.STemperature effect on zero±0.1%F.S/10℃Temperature effect on output±0.1%F.S/10℃Operating temperature-20℃~+80℃Input impedance700ΩOutput impedance1000ΩInsulation resistance≥5000MΩSafety overload150%F.SBridge voltage (excitation voltage)DC 5-10VMaterialAlloy steel or stainless steelProtection classIP66Cable length2mWiringEXC+: Red, EXC-: Black, SIG+: Green, SIG-: WhiteSmall load cell dimension: CapacityDimension (mm)ΦAΦCΦDHEMH1SR5~200kg202.515.51210M32.72300~1000kg26518.51511.5M43.562 ton306201814M43.5153-5 ton37.710.83115.514M2.53.550 Display Controller:https://www.ebay.com/itm/156266280220
