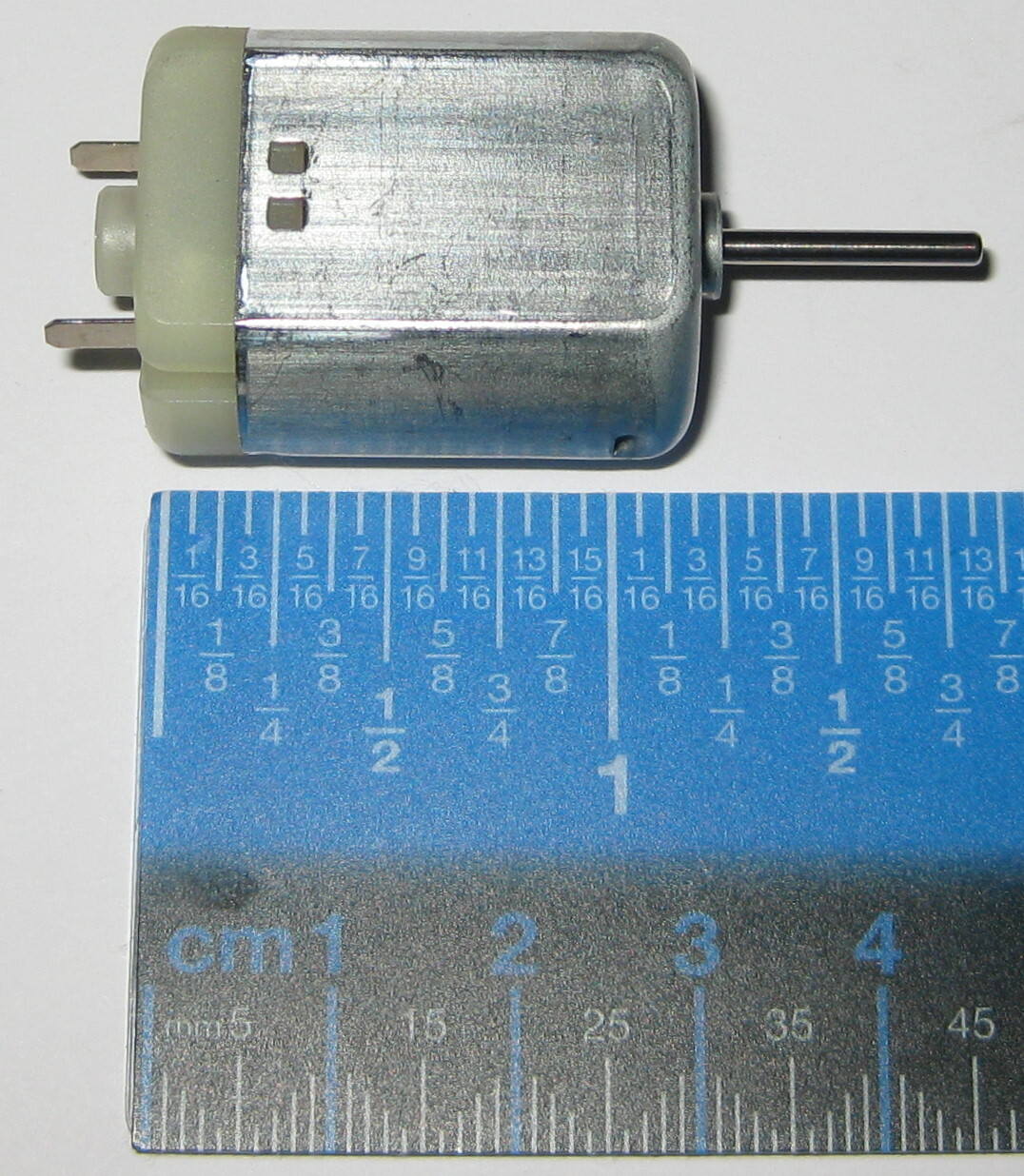

280 Mabuchi DC Motor / Mini Generator – 12 VDC – Generate 1 V per 800 RPM
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Full Load Amps | 0.8 a |
| MPN | FK-280 |
| DC Stator/Winding Type | Permanent Magnet |
| Shaft Type | Straight |
| Nominal Rated Input Voltage | 12 V |
| Model | FK-280 |
| Starting/Locked Rotor Torque | 325 g/cm |
| Reversible/Non-Reversible | Reversible |
| Rated/Full-Load Torque | 45.4 g/cm |
| Shaft Diameter | 2.0 mm |
| Base RPM | 8000 RPM |
| Brand | Mabuchi |
| Type | Brushed Motors |
280 Mabuchi DC Motor / Mini Generator - 12 VDC - Generate 1 V per 800 RPM Electric DC motor manufactured by Mabuchi Works great as a miniature generator too Generates 12 V at 9,600 RPM (1 V per 800 RPM) Intermittent duty (be aware of temperature to prevent overheating)Great for school projects, science fairs, hobbies, etc. Model: FK-280 Operates on 12 VDC nominal Recommended operating voltage range 10 VDC to 15 VDC Motor performance at 12V: No load speed: 8,000 RPM No load current: 50 mA Stall current: 800 mA Stall torque output: 325 g/cm Full load current: 500 mA Full load torque output: 45.4 g/cm Can be operated in either direction, simply reverse power supply polarity Dimensions (not including shaft): 30.5 mm long x 24.2 mm wide x 18.0 mm thick Shaft dimensions: 15 mm long x 2.0 mm diameter Weight: 1.4 oz (40 g)
