2 TE Connectivity BNC Right Angle Connectors for RG400 RG142 RG58 0-4 GHz 50Ω
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 14 Days |
| Refund Will Be Given As | Money Back |
| Brand | TE Connectivity |
| Gender | Female |
| MPN | PBD-50-M-01-MSC |
| Coaxial RF Connector Type | BNC Connector |
| Body Material | Brass |
| Termination Type | Bayonet Lock |
| Compatible Mounting Type | Wire |
| Custom Bundle | Yes |
| Country/Region Of Manufacture | United States |
| Bundle Listing | Yes |
| Model | PlugPak BNC Connectors |
| UPC | Does Not Apply |
| Type | BNC Connector |

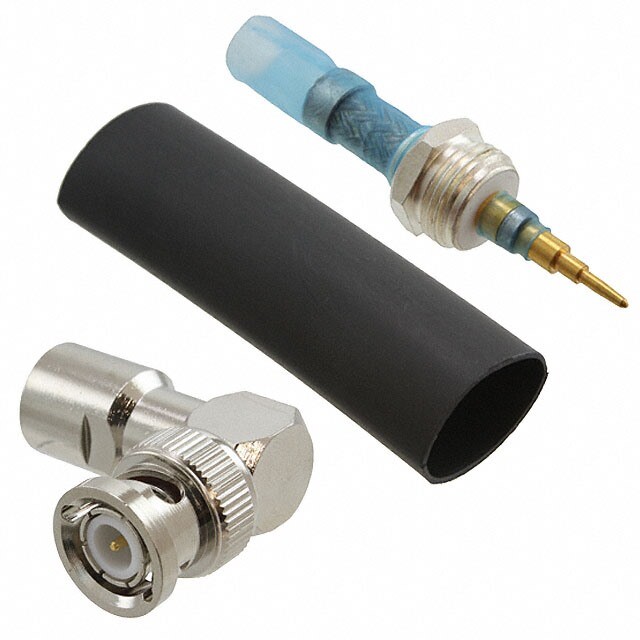

We’re excited to make available this lot of 2 Mil-Spec TE Connectivity 50O BNC Right Angle Connectors which can be used with a variety of coax cable, like RG-400 RG-58, RG-141, RG-142, RG-303 plus Tyco Cheminax model # 5019D3318, 5021D1331 and 5020A1311- NOTE: There is only a single connector in the main photo, you will indeed receive two (2) brand new connectors in factory sealed packaged. Part # TE Connectivity PBD-50-M-01-MSC Sometimes referred to as the RF One-Step, or PlugPak BNC Connectors. These connectors use a solder inside heat-shrinkable insulation technique to terminate the center conductor and shield of a coaxial cable. They are extensively use by the US Military (NSN 5935-01-478-5760) in Military communications "comms" cable systems. These are widely utilized in reliable mission-critical communications, tactical radios for airborne, vehicular, manpack and handheld applications. Regarded as high performance ultra-reliable interconnects, Digikey has them categorized as "TE Connectivity Aerospace, Defense and Marine" and sell them for $34.40 each Mouser & Newark both sell them for $43.90 each. See the last photo which is a screen shot of the various franchised distributors who currently stock this connector and sell this connector for $30-$80 each, making this a fantastic value at less than $9.99 each! One-Step BNC connectors are single-piece assemblies for terminating the center conductor and the braid of a broad range of coaxial cables including: RG-400 RG-58, RG-141, RG-142, RG-303 and Cheminax 5019D3318, 5021D1331 5020A1311 The connectors are fully intermateable with MIL-C-39012 connectors and are 50-ohms Product Facts Easy, quick installation Outstanding cable-retention force Solder-solder connection type (center conductor and braid) One-step termination for easy, quick installation and lower installed cost Exceptional cable retention force to withstand high vibration and frequent mates and unmates Fully soldered center conductor and braid Excellent built-in strain relief against vibration and excessive handling Long-term reliability Controlled soldering termination Use with standard RG-400 RG-58, RG-141, RG-142, RG-303 cables and TE Cheminax cables Meets performance requirements of MIL-C-39012 up to 2.8 GHz Material Center contact: Gold-plated beryllium copper (female)& Gold-plated brass (male) Dielectric insulator: PTFE Transition: Silver-plated brass Connector body: Nickel-plated brass Solder and flux: Sn63Pb37, RMA flux Braided shield: Tin-plated copper wire per ASTM B3 Insulation sleeve: Radiation-crosslinked, heat-shrinkable polyvinylidene fluoride, transparent blue Strain relief/sealing sleeve: Radiation-crosslinked, heat-shrinkable modified polyolefin with adhesive, black Typical Performance Dielectric withstand voltage: 1500 V Insulation resistance: 5000 megohms Temperature rating: -55°C to 150°C [-67°F to 302°F] Contact resistance-straight Inner: = 1.5 milliohms, outer = 1.0 milliohm Contact resistance — right-angle Inner: = 2.5 milliohms, outer = 1.5 milliohms Cable retention force: 295N (66 lb) to 822N (196 lb) Voltage rating: 500 V RMS Connector durability: 500 mating cycles minimum Electrical Performance Nominal impedance: 50 Frequency range: Up to 2.8 GHz Polarity: Standard Cable Type: RG-400 RG-58, RG-141, RG-142, RG-303, and Cheminax 5019D3318, 5021D1331 5020A1311 Body Material: Brass Contact Plating: Gold Voltage Rating: 500 V Brand: TE Connectivity / Raychem Contact Material: Brass Body Finish: Nickel Insulation Resistance: 5000 MOhms Maximum Operating Temperature:+ 150 C Minimum Operating Temperature:- 55 C If you're utilizing Tensolite / Thermax, Pasternack, HUBER+SUHNER, Times Microwave or any other high-performance premium M17/128-RG400 coax cables, then you’ll have an exceptional cable assembly worthy of the finest test lab. Incidentally Pasternack BNC Male Right Angle to BNC Male Right Angle Cable in a 72” Length Using RG142 Coax (part number PE3044) costs about $100 ea. With these Tyco PBD-50-M-01-MSC connectors you can easily assemble a superior cable assembly, for a fraction of the cost. Total Parts will guarantee you're totally happy with your purchase! 14 Day Return Policy if merchandise is in unused condition.We promise to ship your merchandise fast!We promise to send you tracking information immediately when shipped!We promise to respond to your questions and concerns!If you have any questions, concerns or suggestions please contact us through the eBay messaging system.Please take a moment to see our current specials on eBay our other eBay listings. Powered by SixBit's eCommerce Solution
