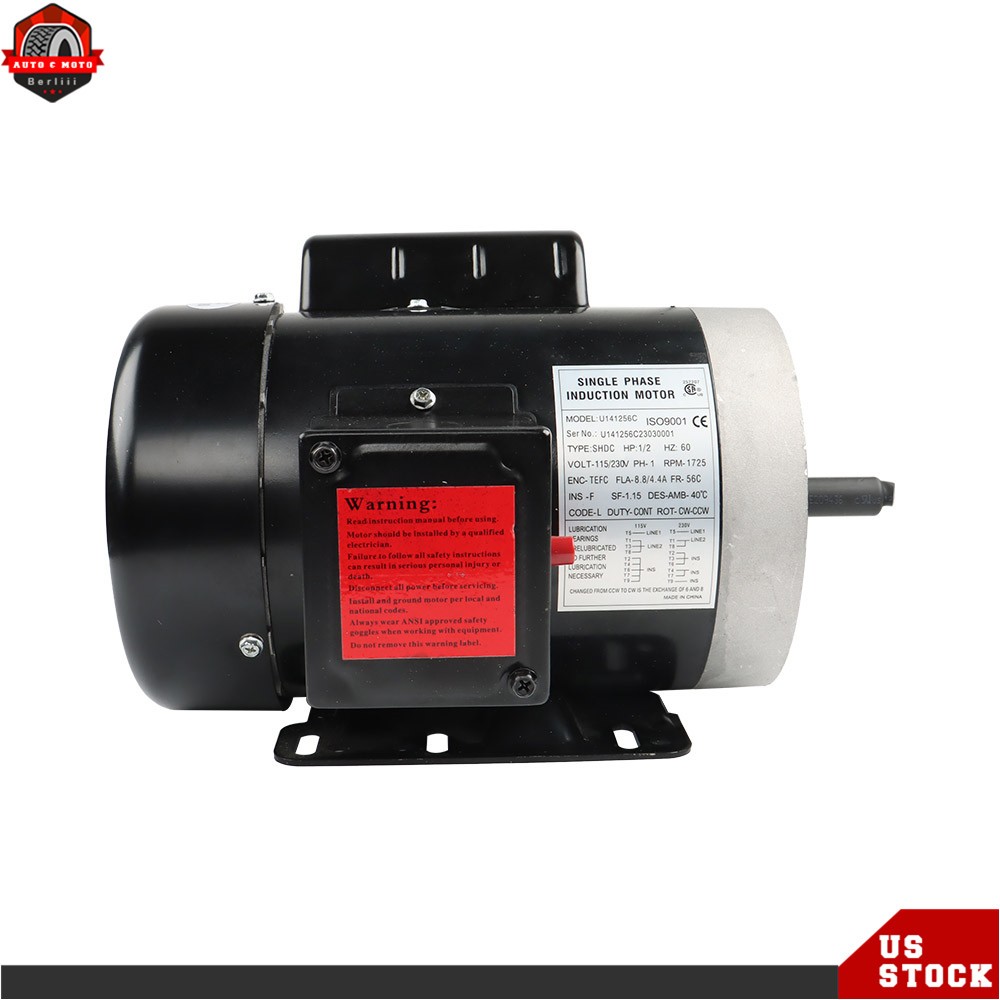

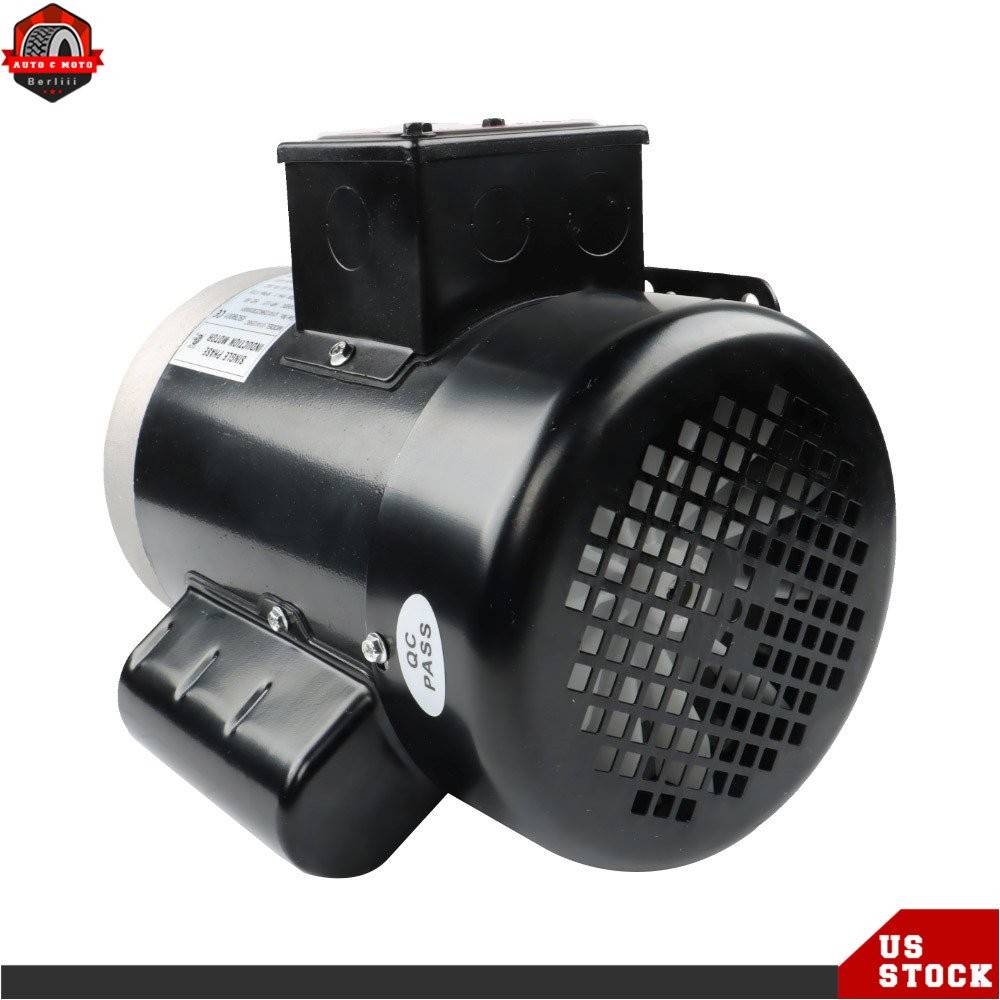

1/2HP 56C 1750RPM General Purpose Electric Motor 1Phase TEFC 60HZ 1.88” Shaft
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| UPC | Does not apply |
| Brand | berliii |
| MPN | BER376515 |
| AC Phase | Single Phase |
| Housing Material | Steel Shell |
| AC Motor Type | Induction/Asynchronous |
| Mounting Type | Based-mounted |
| IP Rating | IP55 |
| Model | General Electric Motor |
| Rated Load (HP) | 1/2 |
| Nominal Rated Input Voltage | 115 V, 230 V |
| Special Motor Construction | Spindle Motor |
| Shaft Diameter | 5/8 in |
| Shaft Length | 1.88 in |
| AC Frequency Ratingg | 60 Hz |
| Rated Speed | 1750 RPM |
| Reversible/Non-Reversible | Reversible |
| Amps | 8.8 A/4.4 A |
| Insulation Class | F (Max 311°F) |
| Synchronous Speed | 1800 |
Key Features: -Rotational Speed: Rotational Speed refers to the motor in rated frequency and rated voltage (or even rated load), the actual speed of the rotor rotation.- Synchronous Speed:Synchronous speed refers to the rotation speed of the stator magnetic field of the motor.- CW(Clockwise) :Represents clockwise rotation.- CCW (Counter-Clockwise):Represents a counter clockwise rotation.- TEFC（Totally Enclosed Fan Cooled):Prevents free exchange of air between the frame interior and exterior, but does not make the frame completely airtight. A fan is mounted on the shaft and pushes air onto the frame during operation to aid the cooling process. Tefc-style shells are versatile. Used for pumps, fans and compressors.Insulation Class F:Including a synthetic resin paint modified with silicone organic compounds for inorganic substances such as mica, asbestos and glass filament；or a synthetic resin, such as alkyd or epoxy with heat resistance meeting this requirement as a binder. The maximum permissible operating temperature is 155 ° C.Pole :Refers to the number of magnetic poles in the excitation winding of the motor. Level 2 means that each phase of the motor contains 2 magnetic poles (one N-pole and another S-pole). Details: - AC Frequency Rating：60 Hz- Reversible/Non-Reversible：Reversible- Nominal Rated Input Voltage：115/230 V- Rated Load (HP)：1/2- Special Motor Construction：Spindle Motor- Current Type：AC- Shaft Diameter：５/8 in- Enclosure Type：TEFC (Totally Enclosed Fan Cooled)- AC Phase：Single Phase- Insulation Class：F (Max 311°F)- Mounting Type：Base-Mounted- Pole ：4- Amps： 8.8/4.4A- AC Motor Type：Induction/Asynchronous- Rotational Speed：1750RPM- IP Rating：IP- Shaft Length：1.88in- Protector：Yes- Housing Material：Steel Shell- Model： General Electric Motor- Synchronous speed:1800- IEC Frame Size：56C- Gross Weight：30.97 lb Maintenance Measures： - Clean the fuselage frequently and keep the surroundings clean.- When not in use for a long time, it is necessary to apply oil or anti-rust oil storage management on the body.- Often check the power control switch, power line is abnormal.- Check the oil level and add lubricant to the motor regularly.- Measure the voltage and current of the motor regularly. The Function of Motor Protectors：- Comprehensive protection control for the motor, in the motor overcurrent, undercurrent, broken phase, blocking, short circuit, overvoltage, undervoltage, leakage, three-phase unbalanced, overheat, grounding, bearing wear, fixed rotor eccentric and winding aging, alarm or protection control. Package Including: - 1 × 1/2HP General Electric Motor - 1 × Manual Payment We accept payment via Paypal,Google Pay,VISA,Master Card,American Express,Discover,eBay Mastercard payment . Shipping We process your order within 3 business day upon payment(note: NOT counting holidays or weekends). International shipping also available. Return & Refund Please read the item description and check the pictures carefully before bidding. Return or refund is available if theres error in item description causing the item not fitting your need or the product you received is damaged or not working. In such cases, seller pays for all related shipping cost if any. Returns are also acceptable if buyer purchased this by mistake and item still in good condition for reselling. Contact Us If you have any question or concern about your eBay order, please feel free to contact us through eBay. We will try our best to reply all messages, as quickly as possible. Feedback We maintain high standards of excellenceand strive for 100% customer satisfaction! Feedback is very important to us. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns. All rights reserved.
